Cold Room For Fresh Keeping And Freezing With Temperature Range
Cold Room
Detailed Photos
Product Descripition:
| Model NO: | DM-LK-0004 | Dimension(L*W*H): | Customized |
| Material of panels: | Polyurethane cold storage board | Copper tube connector: | Fitting reducer |
| Voltage: | 380V/460V/220V | Controller: | Automatic electric controller, PLC |
| Refrigerant: | R404a R22a R134a R507 | Quality Assurance: | 2.6Mpa leak-proof stress test |
| Door type: | Swing Door/Sliding Door/Double Door/Single Door | Cold room compressor type: | Screw,Piston, Scroll etc |
| Use nature: | Fresh Keeping Freezing | Trademark: | N/M |
| Density of panel: | 150-200kg/cm3 | Certification: | ISO;CE |
| Core material: | Rock wool Polyurethane | Temp of room: | -40°C~+20°C Customization |
| Fittings: | All necessary fittings are included, optional |
Type:
Freezer room, blast freezer room, cold storage room, MEAT refrigeration, FRUIT and VEGETABLE STORAGE room, seafood storage room, display cold storage room, freezer room, logistics cold storage room.
Our cold storage can be customized
Cold Room Parameters
| Use nature/Suitable for | Tempreture range |
| Fruit ripening | >25℃ |
| Processing room | 12~19℃ |
| Fruit, vegetable, dry food | -5~+10℃ |
| Medicine, cake, pastry, chemical material | 0~-5℃ |
| Ice storage room | -5~-10℃ |
| Fish, meat storage | -18~-25℃ |
| Deep freezer, low temperature storage, quick-freeze, blast freezer | -25~-40℃ |

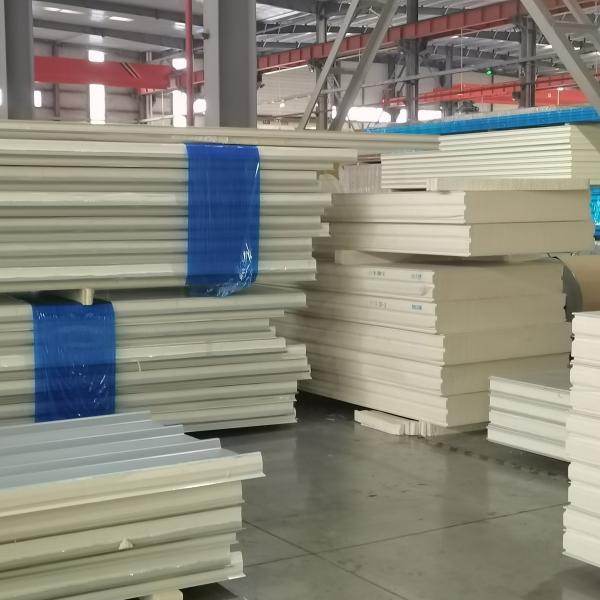

Freezer Room PU Panel:
Material selection:
Color steel plate, stainless steel plate, nano anticorrosive plate, specific materials, according to customer requirements, customized thickness and color.
Advantages:
High pressure strength, flexible combination, easy installation, etc.
Condensing Unit:
•Compressor Optional:
1-Hermetic Scroll
2-Semi-hermetic or Screw
•Condenser:Air cooled or Water cooled
•Frame:can be stell shell with spray painting or open type on stell frame
•Refrigerant:R404a/R410a
•Capacity:Singe compressor 2HP-50HP
Air cooler:
Size can be customized according to customer needs
Defrosting speed is fast, effect is good, energy consumption is small
Selection of well-known fan motor, low noise, large air volume
Aluminum profiles are processed by hot and cold processes in the production process
Beautiful appearance, double shell spray
Packing:
The protective packaging of the PU Panel:
1, film packaging to prevent moisture, rust and transportation scratches
2. Four-corner cardboard protection to prevent impact
3, neatly placed, avoid shaking
(Customize)
The protective packaging of the Smart Packaged Unit:
1. Wooden box: fix the compressor and fan to prevent shaking
2. Bottom support: easy to load and unload to prevent packaging damage
Freezer room is a warehouse that artificially generates a specific temperature. It is usually designed to store products in an environment below the outside temperature. Combination cold room was assembled by PU panels,cold room at the same time has good air tightness and heat insulation effect.
According to the requirements of use of thermal insulation and cold room panel place is different, can choose different size and the thickness of the material according to the requirements of panel products.
Company Profile:
Zhejiang Damai Cold Chain Equipment Co., Ltd. was established in 2001, is a specialized company engaged in cold storage design, installation and sales. The company is located in Shaoxing, Zhejiang, China, the company has a strong technical design team, with strong technical force and advanced production equipment, to provide customers with high quality, high efficiency, high benefit quality service.
Why choose our company ?
1.We have one year's after-sales service
2.We have more than 20 years experience in cold storage design
3. We have our own equipment manufacturing plant
4.We will reply with the most professional words as soon as possible
Product feature
1.Quite operation.
2.Seamless connection.
3.Easy installation
4.Beautiful and elegant placement of circuit devices.
5.Using the best equipment.
6.Good cooling effect
FAQ:
Q:Are you trading company or factory?
A:We are the Leader factory in refrigeration equipment industry in China with the export right
Q:How about your delivery time?
A:Generally, it will take 15 to 30 days after receiving your advance payment.The spe-cific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
